As the heart of your e-bike ride, mid-drive delivers excellent power and balance. A combination that boosts your riding confidence and keeps you in the loop of wanting to ride more. But every machine needs some proper care, and so does your e-bike mid-drive motor. If you neglect motor maintenance, you risk a costly repair or total damage over time.
However, no matter how reliable your e-bike brand is, you need to learn how to service your e-bike’s mid-drive motor. Anyway, the good news is you don’t have to be an expert to learn the basics of servicing a mid-drive. All you need is tools, a well-detailed guide, and a clean workspace.
In this blog post, you will learn how to service and inspect your e-bike mid-drive motor for proper efficiency and reliability. We will walk you through every step to ensure that removing and reassembling remains simple. Are you ready to extend your bike’s lifespan? Let’s dive into it!
What Is a Mid-Drive Motor?

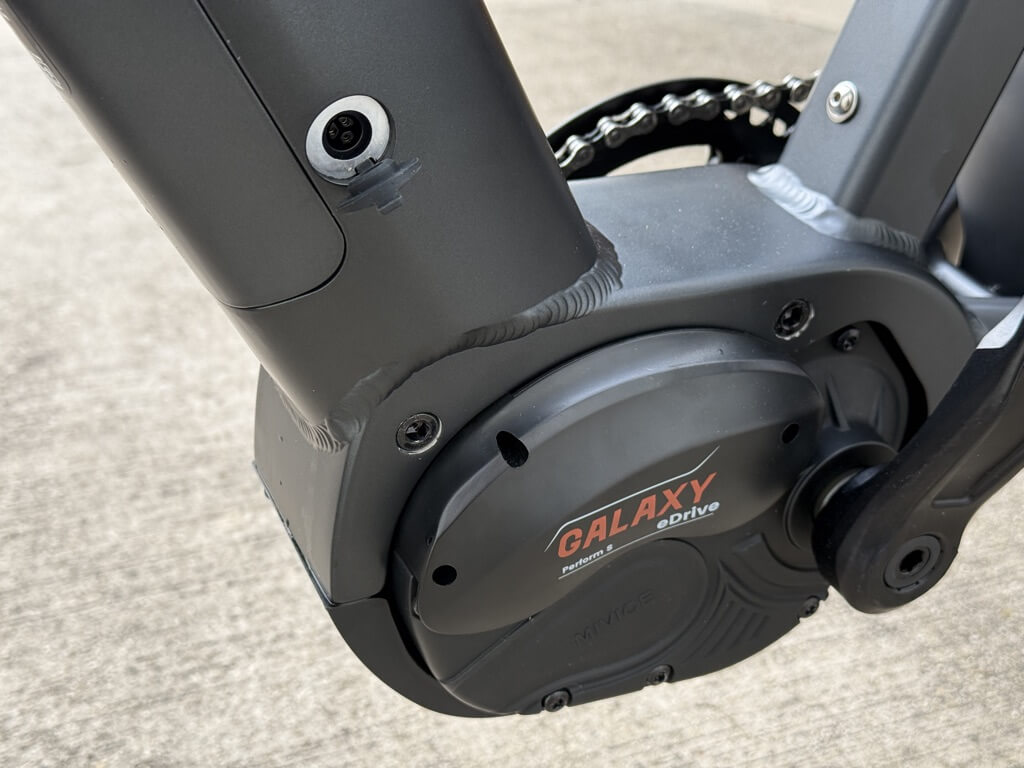

Are you a new rider wondering where the e-bike motor drive is located? The mid-drive is placed on the right at the center of the frame, and it’s very close to your pedals. This motor offers the rider a natural riding feel. As you ride the crank, mid-drive ensures that power travels through the chain or belt.
The mid-drive motor positioning gives the e-bike design a better balance and improved traction. Racing up hills becomes easier due to its superior riding power. Moreover, these benefits make it a better choice for touring and mountain e-bikes. Servicing remains the same for all brands, whether Bosch, Yamaha, or Brose. But designs are different.
>>> Check out these best reflective gears for e-bike commuters
Why Servicing Your Mid-Drive Motor Matters
Servicing is great for the e-bike motor drive. As you commute with your e-bike either daily, weekly, or monthly, you expose it to dirt, dust, and mud. All of this can accumulate and infiltrate the mid-drive motor casing. This results in low performance and premature wear.
However, regular servicing can prevent this gear wear and grinding. When you service your motor once a year, you help maintain the battery’s power efficiency. Furthermore, you will save yourself costly repairs.
Note: 6-month regular servicing is advisable for off-road riders and winter rides.
Tools and Supplies You’ll Need
The possibility of damaging sensitive components is high when you use the wrong tools. This is why we have listed the appropriate tools for mid-drive maintenance.
Essential Tools
- Get an Allen key of 4mm -8mm
- Consider a soft brush or a microfiber cloth.
- Crank puller
- Premium bike grease( e-bike lubricant )
- Bottom bracket removal
- Isopropyl alcohol
- 5-50Nm Torques wrench
Safety tip: Disconnect the battery before mid-drive maintenance. Electrical components can be damaged by water.
Step-by-Step: How to Service an E-Bike Mid-Drive Motor
Step 1: Power Down and Remove the Battery
This is the first step before any maintenance is done. Switch off the e-bike and remove the battery frame. Ensure that all plugs are removed, especially the ones connected to the motor.
Note: this step is crucial to prevent short circuits and other hazards such as fire.
Step 2: Remove the Crank Arms and Chainring
First of all, you will find your mid drive enclosed behind the crankset. Now is the time to use your crank puller to pull out the crank arms, and this must be done carefully.
Next is the chainring removal. This can be done using an Allen key or chainring tools. Any of these tools is efficient for the job.
Get a container for the removed bolt to prevent misplacing it. Finally, check for any distorted or bent teeth and replace them with new ones if found.
Step 3: Detach the Motor Housing

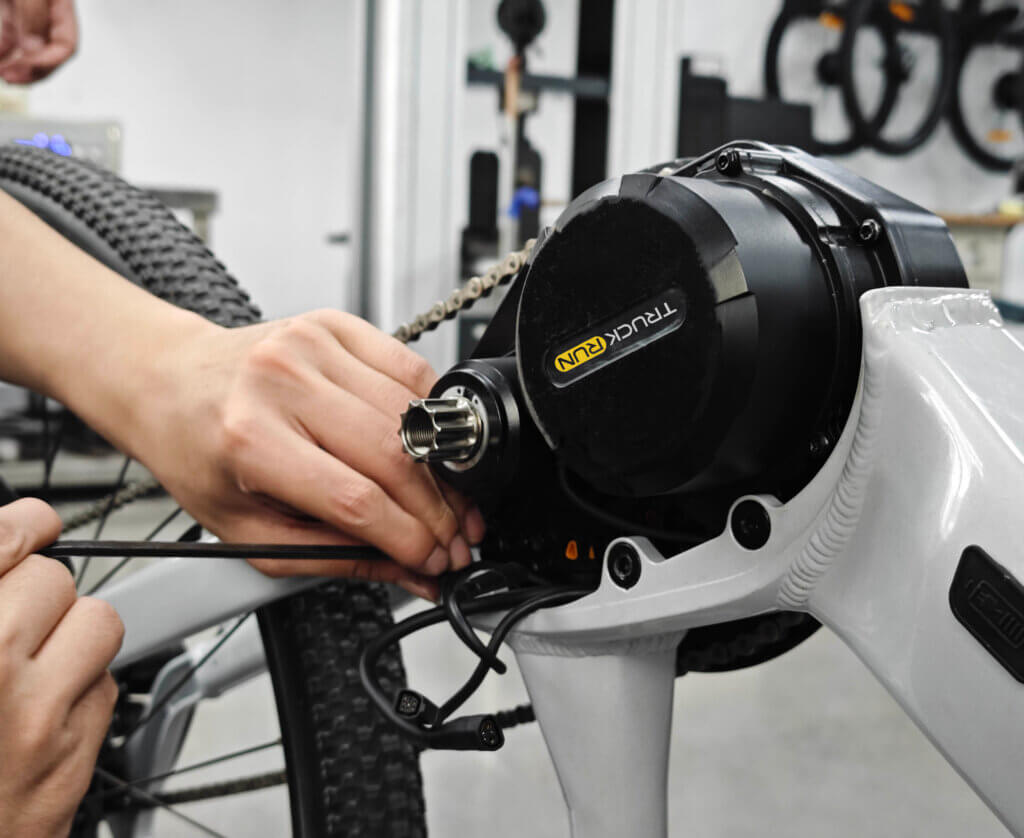

Time to patiently unscrew the motor from the frame using the Allen or Torx bit. After removing the bolt that attaches them, gently slide the motor from its mount.
For a waterproof motor, disconnect with your hands. Pliers might get you into trouble.
Note: Do not forcefully remove the motor at any point. This can damage the connector or even the internal wiring.
Step 4: Clean the Exterior
Clean the detached motor with a neat, dry microfiber cloth. Use your soft brush to remove any dust or dirt around the vent and connectors.
Note: Avoid direct or indirect water spray into the motor. You can use a silicone spray instead.
Step 5: Open the Motor (If Out of Warranty)

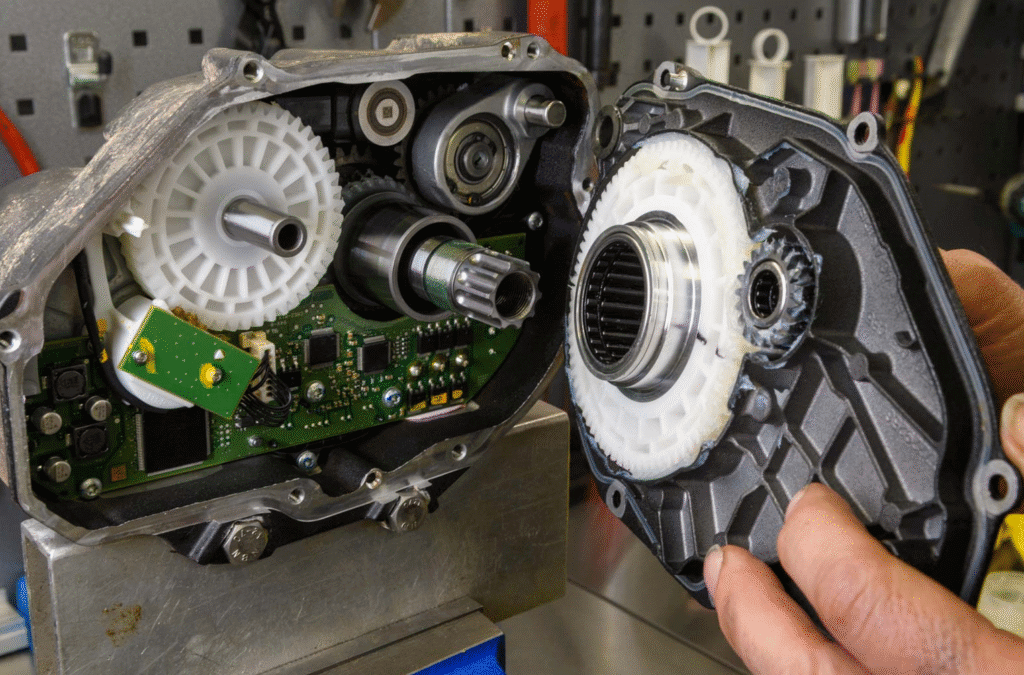

This is the hard part; you will need confidence to handle this part. Start to unscrew your mid-drive motor case. Afterwards, carefully separate the cover. Look inside for possible dirt, corrosion, or any grease residue buildup.
Furthermore, the motor cases have bearings, circuit boards, and metal or nylon gears. So be careful with it.
Get your isopropyl alcohol and put some on a clean cloth. Gently clean the surfaces, and do not use this cleaning agent excessively.
Step 6: Inspect the Gears and Bearings
The gear is crucial in e-bike motor maintenance. Check for any sign of wear, such as chipped or rounded teeth.
Spin the bearing carefully to check for any sign of grit. If it’s loose, get a replacement. If the grease is dry or black, reapply a new one.
Avoid heavy greasing at all costs. This will save you from damaging the sensors.
Step 7: Reassemble the Motor
After greasing, reassemble the motor cover and tighten the bolt. This can be done with the torque wrench. Gently reconnect all the wires and place the plug in the right place. The plug must click securely. Always double-check every wire and confirm there are no misalignment issues.
Step 8: Reinstall the Crankset
Finally, it’s time to reattach the chainring and also the crank arm. Proceed with a clean thread and then insert the bolt.
You can apply an anti-seize compound depending on the manufacturer’s instructions. Afterward, tighten the bolt with the manufacturer’s torque instructions. This is usually between 35-50Nm.
Spinning is important to ensure that there’s no noise. Once the sound is smooth, then you can go to the next step.
Step 9: Test Your E-Bike
Now that you are done with maintenance, it is time to reassemble and ensure that every part is in good shape. Reconnect the battery and turn on the power to ensure that it’s properly connected.
Once the battery responds, it’s time to engage the motor assist. If there is no clicking or any error message on the display, and your chains are working without strange noise. We say congratulations on your successful mid-drive motor maintenance.
Note: In case there’s an issue, check your crank alignment and mounting bolts. These are the most likely culprits.
Common Mid-Drive Motor Problems and Fixes
Check the table below for a quick troubleshooting fix if you have any issues while servicing your e-bike mid-drive motor.
| Problem | Likely Cause | Quick Fix |
| Grinding noise | Dirty or dry gears | Clean and regrease gears |
| Power loss | Loose connection/sensor issue | Check cables and connectors |
| Motor cuts out intermittently | Battery or controller issue | Reset the system and inspect the battery |
| Squeaking sound | Crank bolts loose | Tighten to the torque spec |
| Error code on display | Sensor misalignment | Recalibrate the torque sensor or contact support |
Pro tip: You don’t have to open your motor case if your e-bike is under a warranty. If you have internal access to it, your warranty might go void. If it’s a motor problem, send it back to your e-bike manufacturer.
When to Seek Professional Help
DIY is best done at home, but some situations require more than cleaning and routine lubrication. However, you will need a professional bike mechanic if your motor needs internal electronic repair. Another reason is bearing replacement and torque sensor calibration. Finally, a firmware update needs to be sorted by a professional. Power irregularities also need a certified technician.
Final Thoughts: Keep Your Mid-Drive Motor in Top Shape
You don’t always need a professional to service your e-bike mid-drive motor. By following our step-by-step guide, you will protect your e-bike investments.
Cleaning should be done regularly, and fresh grease should be applied when dry. Ensure that your bolts are secured, and your e-bike will be efficient all day. Save hundreds by servicing your e-bike motor yourself. Your e-bike will thank you the next time you ride it.
